M Series (Single)

1/4″ & 3.5mm Jacks

Amphenol phone connectors are available in 1/4” (6.35mm) and 3.5mm jack sockets or dual jack socket versions featuring combinations of both sizes. The standard heavy duty contacts provide excellent signal performance and the rugged designs excel in professional audio applications. Our wide range of options ensures we have the connector to suit your specific requirements. Custom jacks can also be developed to suit unique applications on request.

Note: Refer to Schematic Chart for Switch Diagrams

Specifications »

Filter By

Termination
Size
Entry
Nut
Thread
Other
Channels

No items were found matching the selected filters

Horizontal PCB

3.5mm

Metal Bore / Without Nut / Threadless
Mono ACJM-NH35 Drawing
Stereo ACJS-NH35 Drawing   3D

1/4"

Metal Bore / Without Nut / Plastic Thread
Mono ACJM-HHDR Drawing
Stereo ACJS-HHDR Drawing   3D
Metal Bore / Metal Nut / Plastic Thread

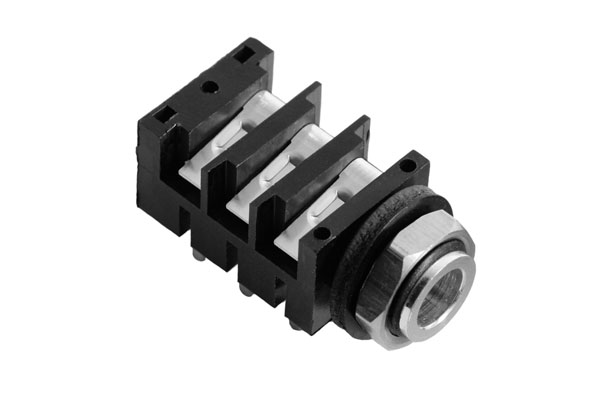

Mono ACJM-MHDR Drawing   3D
Stereo ACJS-MHDR Drawing   3D
Metal Bore / Metal Nut / Metal Thread
Mono ACJM-MHDRM Drawing
Stereo ACJS-MHDRM Drawing
Plastic Bore / Without Nut / Plastic Thread
Mono ACJM-HHOP Drawing
Stereo ACJS-HHOP Drawing   3D
Plastic Bore / Without Nut / Plastic Thread
Mono (1) ACJM-HHOP-1 Drawing
Stereo (1) ACJS-HHOP-1 Drawing
Plastic Bore / Plastic Nut / Plastic Thread

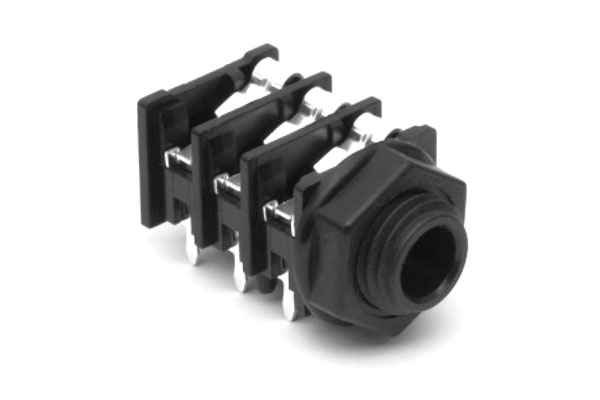

Mono ACJM-PHOP Drawing
Stereo ACJS-PHOP Drawing
Plastic Bore / Metal Nut / Plastic Thread
Mono ACJM-MHOP Drawing
Stereo ACJS-MHOP Drawing
Plastic Bore / Plastic Nut / Plastic Thread
Mono (1) ACJM-PHOP-1 Drawing
Stereo (1) ACJS-PHOP-1 Drawing
Plastic Bore / Metal Nut / Plastic Thread
Mono (1) ACJM-MHOP-1 Drawing
Stereo (1) ACJS-MHOP-1 Drawing
Metal Bore / Metal Nut / Metal Thread / Chassis Ground Connection
Mono ACJM-MHOM Drawing
Stereo ACJS-MHOM Drawing   3D
Metal Bore / Plastic Nut / Metal Thread
Mono ACJM-PH Drawing
Stereo ACJS-PH Drawing
Metal Bore / Metal Nut / Plastic Thread
Mono ACJM-MH Drawing
Stereo ACJS-MH Drawing   3D
Metal Bore / Plastic Nut / Plastic Thread / Snap-fit PCB
Mono ACJM-PHR Drawing
Stereo ACJS-PHR Drawing   3D
Metal Bore / Metal Nut / Plastic Thread / Snap-fit PCB
Mono ACJM-MHR Drawing
Stereo ACJS-MHR Drawing
Metal Bore / Plastic Nut / Plastic Thread / Solder Lug
Mono ACJM-PC Drawing
Stereo ACJS-PC Drawing
Metal Bore / Metal Nut / Plastic Thread / Solder Lug
Mono ACJM-MC Drawing
Stereo ACJS-MC Drawing
Metal Bore / Plastic Nut / Plastic Thread / Solder Lug
Mono ACJM-PHS Drawing
Stereo ACJS-PHS Drawing
Metal Bore / Metal Nut / Plastic Thread / Solder Lug
Mono ACJM-MHS Drawing
Stereo ACJS-MHS Drawing
Plastic Bezel / Metal Nut / Metal Thread / Solder Lug
Mono ACJM-IHS Drawing
Stereo ACJS-IHS Drawing   3D
Plastic Bezel / Metal Nut / Metal Thread
Mono ACJM-IH Drawing
Stereo ACJS-IH Drawing   3D

Vertical PCB

3.5mm

Metal Bore / Without Nut / Threadless
Mono (2) ACJM-NV35-2 Drawing
Mono (2S) ACJM-NV35-2S Drawing
Stereo (3) ACJS-NV35-3 Drawing
Stereo (3S) ACJS-NV35-3S Drawing
Stereo (5) ACJS-NV35-5 Drawing   3D
Metal Bore / Metal Nut / Metal Thread
Mono (2) ACJM-MV35-2 Drawing   3D
Mono (2S) ACJM-MV35-2S Drawing
Stereo (3) ACJS-MV35-3 Drawing   3D
Stereo (3S) ACJS-MV35-3S Drawing   3D
Stereo (5) ACJS-MV35-5 Drawing   3D

1/4"

Plastic Bore / Plastic Nut / Plastic Thread
Mono (2) ACJM-PVB-2 Drawing
Mono (2S) ACJM-PVB-2S Drawing
Stereo (3) ACJS-PVB-3 Drawing
Stereo (3S) ACJS-PVB-3S Drawing
Stereo (5) ACJS-PVB-5 Drawing
Metal Bore / Metal Nut / Plastic Thread

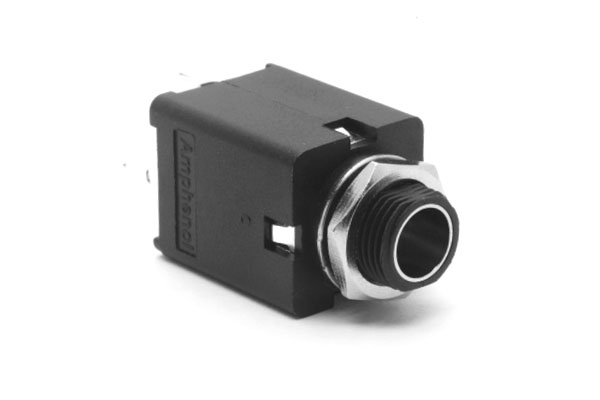

Mono (2) ACJM-MIV-2 Drawing
Mono (2S) ACJM-MIV-2S Drawing   3D
Stereo (3) ACJS-MIV-3 Drawing   3D
Stereo (3S) ACJS-MIV-3S Drawing
Stereo (5) ACJS-MIV-5 Drawing
Metal Bore / Metal Nut / Metal Thread / Star Washer
Mono (2) ACJM-MN-2 Drawing
Mono (2S) ACJM-MN-2S Drawing
Stereo (3) ACJS-MN-3 Drawing
Stereo (3S) ACJS-MN-3S Drawing
Stereo (5) ACJS-MN-5 Drawing
Metal Bore / Metal Nut / Metal Thread
Mono (2) ACJM-MV-2 Drawing
Mono (2S) ACJM-MV-2S Drawing
Stereo (3) ACJS-MV-3 Drawing
Stereo (3S) ACJS-MV-3S Drawing
Stereo (5) ACJS-MV-5 Drawing
Metal Bore / Metal Nut / Metal Thread / Solder Lug
Mono (2) ACJM-MVS-2 Drawing   3D
Mono (2S) ACJM-MVS-2S Drawing   3D
Stereo (3) ACJS-MVS-3 Drawing
Stereo (3S) ACJS-MVS-3S Drawing
Stereo (5) ACJS-MVS-5 Drawing
Features
  • 3.5mm and 6.35mm (1/4”) options
  • Mono or Stereo (TRS)
  • Vertical or Horizontal PCB mount
  • Mono and Stereo with switching contacts
  • Solder or Combo contacts
  • Various mounting option
