HPT Series

Power Cable Connectors & Mounts

HPT Series connectors are suitable for AC power supply where a durable latch locking connector is required. They are rated at 16A, 250 Vac. HPT Series connectors can be connected or disconnected under load and are IP65 rated.

Downloads »

Filter By

Type
Type
Description
Other

No items were found matching the selected filters

Cable Connector

Inlet

Lockable Latch & Backshell
Screw Contacts HPT-3-M Drawing   3D

Outlet

Lockable Latch & Backshell
Screw Contacts HPT-3-F Drawing   3D

Chassis Connector

Inlet

With Insulation Divider
Flat Tabs 1/4" HPT-3-MD Drawing   3D
Without Insulation Divider
Flat Tabs 1/4" HPT-3-MDW Drawing   3D

Outlet

With Insulation Divider
Flat Tabs 1/4" HPT-3-FD Drawing   3D
Without Insulation Divider
Flat Tabs 1/4" HPT-3-FDW Drawing   3D

Inlet-Outlet

With Insulation Divider
Flat Tabs 1/4" HPT-3-CC Drawing   3D

Accessory

Protective Sealing Cap

With Stainless Steel Lanyard

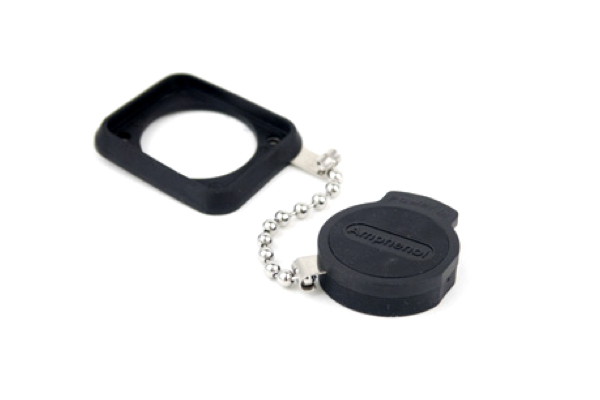

To suit HPT-3-MD / HPT-3-MDW HPT-CAPM Drawing   3D
With Stainless Steel Lanyard
To suit HPT-3-FD / HPT-3-FDW HPT-CAPF Drawing   3D
With Stainless Steel Lanyard
To suit HPT-3-CC HPT-CAPD Drawing   3D
Self-Closing
To suit HPT-3-MD / HPT-3-MDW HPT-CAPSM Drawing   3D
Self-Closing
To suit HPT-3-FD / HPT-3-FDW HPT-CAPSF Drawing   3D
Self-Closing
To suit HPT-3-CC HPT-CAPSD Drawing   3D

Tool

Cable Connector Backshell Lock Release
Tool HPT-RT
Features
  • 2+PE contact layout
  • Quick-release, vibration resistant latch lockable
  • High impact UV resistant material
  • True Mains Connector with Current Breaking Capacity (CBC)
  • 16A current rating (20A USA)
  • Industry-standard mating interface
  • IP65 rated
  • US. Patents (10,186,804)(D839,193)(D840,341)
  • UL498 certified
  • UL50E enclosure type 4 (when mated or in combination with protective caps)
