AC “Z” Series

P and PN Type
XLR Chassis Mounts

The metal chassis mount “Z” series (P and PN Type) connectors are designed for the audio user where durability, reliability and strength across a wide range of applications are important. All AC products are manufactured to the highest quality standards and will withstand the harshest environments. This range complies with IEC268-12 and AES 14-1992 standards. CSA File Number 68598.

Note: A ground tag is standard on all AC “Z” series connectors. Although the ground tag is intended for RFI shielding applications, Amphenol cannot guarantee its effectiveness in all cases.

The non-conductive Black polyester finish insulates the ground tag from the shell and should not be used in applications requiring ground contact to the shell.

Downloads »

Filter By

Gender
Contact Layouts
Machine / Stamped
Flange

No items were found matching the selected filters

Male

3 Pole

Stamped Contacts / PN Flange
Standard Plating AC3MPNZ Drawing   3D
Machined Contacts / PN Flange
Standard Plating AC3MMPNZ Drawing   3D
Stamped Contacts / P Flange
Standard Plating AC3MMP
Machined Contacts / P Flange
Standard Plating AC3MP

4 Pole

Machined Contacts / PN Flange

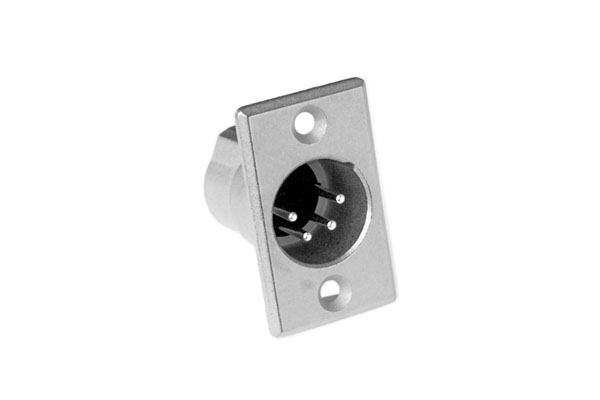

Standard Plating AC4MPNZ Drawing
Machined Contacts / P Flange
Standard Plating AC4MP Drawing

5 Pole

Machined Contacts / PN Flange
Standard Plating AC5MPNZ Drawing
Machined Contacts / P Flange
Standard Plating AC5MP Drawing

6A Pole

Machined Contacts / PN Flange
Standard Plating AC6AMPNZ Drawing
Machined Contacts / P Flange
Standard Plating AC6AMP Drawing

7 Pole

Machined Contacts / PN Flange
Standard Plating AC7MPNZ Drawing
Machined Contacts / P Flange
Standard Plating AC7MP Drawing

Female

3 Pole

Stamped Contacts / P Flange
Standard Plating AC3FPZ Drawing

4 Pole

Stamped Contacts / P Flange
Standard Plating AC4FPZ Drawing

5 Pole

Stamped Contacts / P Flange
Standard Plating AC5FPZ Drawing   3D

6A Pole

Stamped Contacts / P Flange
Standard Plating AC6AFPZ Drawing

7 Pole

Stamped Contacts / P Flange
Standard Plating AC7FPZ Drawing
Features
  • The “P” size housing is the original wide flange front mounting XLR connector
  • “PN” is the original narrow flange front mounting male connector
  • A leading first mate last break socket contact is standard on all female connectors (Pin 1)
  • Solder cup or Vertical PCB versions
  • Connectors are fitted with a grounding system for RFI shielding applications
  • Available in 3, 4, 5, 6A and 7 contact arrangements.
  • Compatible with all other XLR brands
Options
  • Solder Bucket termination
  • Vertical PCB contacts
  • Zinc Diecast Shell – Satin Nickel Finish
  • Zinc Diecast Shell – Black Polyester Finish
  • Gold, Silver or Tin Plated Contacts
  • Bulk Packaging
  • Single Bag packs
  • Precision machined contacts
  • Cost effective stamped contacts on 3 pole
