HP Series

Power Cable Connectors & Mounts

HP Series connectors are suitable for AC power supply where a latch locking connector is required. They are rated at 25 A / 250 Vac. Connectors are keyed and colour coded for power-in (Blue) and power-out (Grey).

THE HP SERIES OF CONNECTORS ARE NOT DESIGNED TO BE “HOT PLUGGED” AND SO ARE WITHOUT “BREAKING CAPACITY”. IN OTHER WORDS, THE CONNECTORS SHOULD NOT BE CONNECTED OR DISCONNECTED LIVE OR WHEN UNDER LOAD.

Specifications »

Filter By

Colour Code
Type
Description
Contact

No items were found matching the selected filters

Power In

Connector

Thermoplastic Shell
Screw Contacts HP-3-F Drawing

Mount

With Insulation Divider
Solder Tabs 3/16" HP-3-MD Drawing   3D
Without Insulation Divider
Solder Tabs 3/16" HP-3-MDW Drawing   3D

Power Out

Connector

Thermoplastic Shell

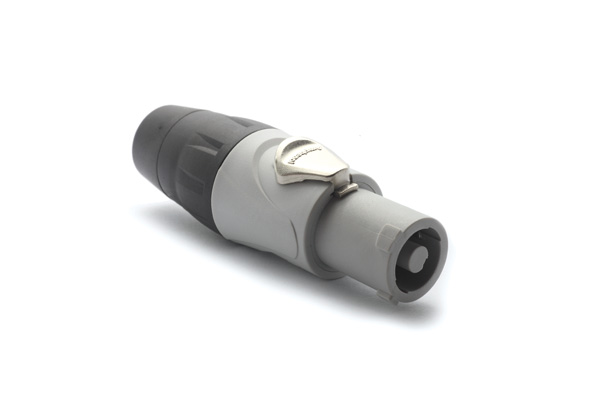

Screw Contacts HP-3-FG Drawing   3D

Mount

With Insulation Divider
Solder Tabs 3/16" HP-3-MDG Drawing   3D
Without Insulation Divider
Solder Tabs 3/16" HP-3-MDGW Drawing   3D
Features
  • Quick release, vibration resistant latch lock
  • 3 pole
  • Screw Terminals or Solder Tab 3/16”
  • Chuck type cable clamp
  • 25A Current rating
  • Thermoplastic housing
  • Industry standard mating
  • UL, cUL recognized components (File no. E339831)
