AX Series

Professional Range
XLR Cable Connectors

The revolutionary AX series of XLR connectors introduce an exciting contemporary look and feel to the professional audio interconnect market. They are designed to complement modern audio architecture and truly “fit” within their environment. An impressive list of features guarantees pure sound performance in the most demanding applications providing unrivalled value.

Specifications »

Filter By

Gender
Contact Layouts
Finish
Contact

No items were found matching the selected filters

Male

3 Pole

AX3M
Nickel Finish
Standard Plating AX3M Drawing   3D
Gold Plated Contacts AX3M-AU Drawing
Bulk Pack AX3M BULK Drawing
Black Finish
Standard Plating AX3MB Drawing
Gold Plated Contacts AX3MB-AU Drawing
Bulk Pack AX3MB BULK Drawing
Nickel Finish with Marking Sleeve
Standard AX3M0M
Gold Plated Contacts AX3M0M-AU
Bulk Pack AX3M0M BULK

4 Pole

Nickel Finish
Standard Plating AX4M Drawing
Gold Plated Contacts AX4M-AU Drawing
Bulk Pack AX4M BULK Drawing
Black Finish
Standard Plating AX4MB Drawing
Gold Plated Contacts AX4MB-AU Drawing
Bulk Pack AX4MB BULK Drawing

5 Pole

Nickel Finish
Standard Plating AX5M Drawing   3D
Gold Plated Contacts AX5M-AU Drawing
Bulk Pack AX5M BULK Drawing
Nickel Finish with Marking Sleeve
Standard AX5M0M
Gold Plated Contacts AX5M0M-AU
Bulk Pack AX5M0M BULK

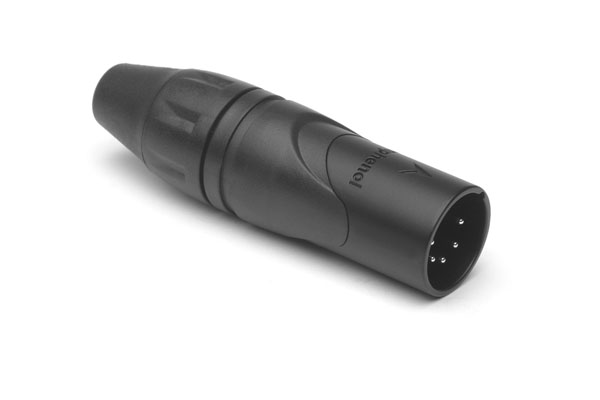

Black Finish
Standard Plating AX5MB Drawing
Gold Plated Contacts AX5MB-AU Drawing
Bulk Pack AX5MB BULK Drawing

Female

3 Pole

Nickel Finish

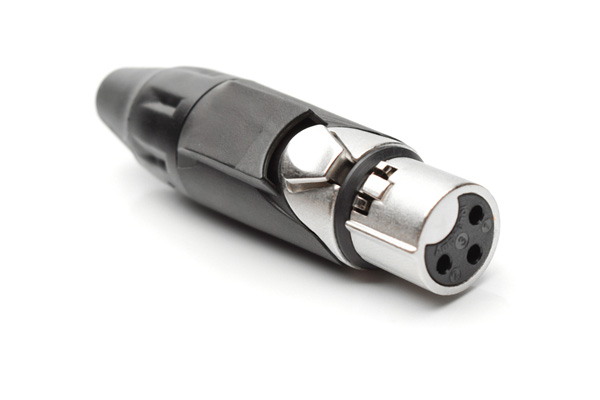

Standard Plating AX3F Drawing   3D
Gold Plated Contacts AX3F-AU Drawing
Bulk Pack AX3F BULK Drawing
Nickel Finish with Marking Sleeve
Standard AX3F0M
Gold Plated Contacts AX3F0M-AU
Bulk Pack AX3F0M BULK
Black Finish
Standard Plating AX3FB Drawing
Gold Plated Contacts AX3FB-AU Drawing
Bulk Pack AX3FB BULK Drawing

4 Pole

Nickel Finish
Standard Plating AX4F Drawing
Gold Plated Contacts AX4F-AU Drawing
Bulk Pack AX4F BULK Drawing
Black Finish
Standard Plating AX4FB Drawing
Gold Plated Contacts AX4FB-AU Drawing
Bulk Pack AX4FB BULK Drawing

5 Pole

Nickel Finish
Standard Plating AX5F Drawing   3D
Gold Plated Contacts AX5F-AU Drawing
Bulk Pack AX5F BULK Drawing
Nickel Finish with Marking Sleeve
Standard AX5F0M
Gold Plated Contacts AX5F0M-AU
Bulk Pack AX5F0M BULK
Black Finish
Standard Plating AX5FB Drawing
Gold Plated Contacts AX5FB-AU Drawing
Bulk Pack AX5FB BULK Drawing
Features
  • Unique Australian designed shell and housing
  • One piece ground / latch spring design incorporating twin wipe contacts for a direct connection path from mating shell to ground providing enhanced connection and EMI performance
  • Ergonomic sleeve design for improved grip
  • Channel I.D capability with coloured sleeves
  • Oversized ergonomic latch for quick and easy mating
  • Leading first mate last break pin 1 on socket connectors
  • Chuck style cable clamp to suit 3mm – 8mm (0.118” – 0.314”) cable O.D. with integrated split to allow inclusion after soldering
  • Concealed latching point for improved aesthetics, sealing and strength
  • Overmolded boot with flex bend relief for improved aesthetics, cable protection and boot retention
  • Concentric socket contact design provides optimal contact resistance
  • Precision machined pin contacts as standard
  • Compact solder buckets to reduce termination time and material wastage during the soldering process
  • Zinc diecast shell housing for robustness and wear with Satin nickel or Black finish
  • Available in 3,4 and 5 contact arrangements
Options
  • Coloured I.D sleeves
  • Satin nickel or Black shell finish
  • Single or Bulk packaging
  • Gold plated contacts
